Application Nozzle

NOZZLE

Dispensing nozzle is the last part where the adhesive is dispensing through the Hot Melt Applicator System, and the appropriate nozzle must be selected and applied.
In addition to the basic nozzles listed below, EGT can design and manufacture special nozzles according to customer circumstances.

How to select a nozzle according to the distance between the nozzle and the adherend

Calculation method of hot melt adhesive requirement(example)

Nozzle Size Scale(1:1) HMA Injection length weight HMA Weight injection length
Side Top
1/32” (0.79mm) 4,031mm/g 0.0248g/cm
1/16” (1.58mm) 1,008mm/g 0.098g/cm
3/32” (2.38mm) 560mm/g 0.178g/cm
1/8” (3.18mm) 306mm/g 0.297g/cm
5/32” (3.97mm) 201mm/g 0.496g/cm
3/16” (4.76mm) 114mm/g 0.876g/cm
1/4” (6.35mm) 77mm/g 1.294g/cm

Product Specifications

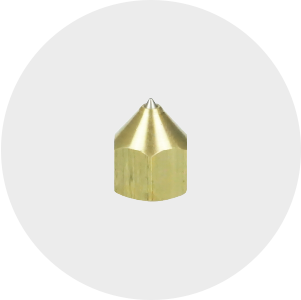

SINGLE NOZZLE

싱글노즐

It is a nozzle in which the tip and the binding nut are integrally formed.

Tip Orifice Size(mm) Part Number
Φ0.3 3320003
Φ0.4 3320004
Φ0.5 3320005
Φ0.6 3320006

EXTEND SINGLE NOZZLE

익스텐드 싱글 노즐

It is a nozzle in which the tip and the binding nut are separated from each other, which is easy to maintain and can be manufactured in various lengths.

Tip Orifice Size(mm) Part Number
Φ0.3 3310003
Φ0.4 3310004
Φ0.5 3310005
Φ0.6 3310006

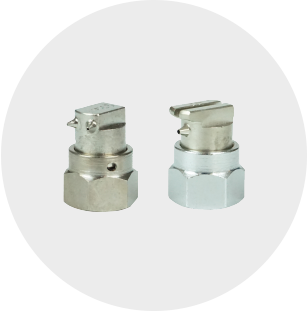

R/T NOZZLE (RIGHT ANGLE)

R/T 노즐

It is a nozzle in which the module and the tip direction are vertical, and it can be fixed by rotating the nozzle direction.

Office Angle, Tip Ofifice Size (mm) Single 15˚
(2 Orifice)
30˚
(2Orifice)
45˚
(2Orifice)
Φ0.3 3331003 3332315 3332330 3332345
Φ0.4 3331004 3332415 3332430 3332445
Φ0.5 3331005 3332515 3332530 3332545
Φ0.6 3331006 3332615 3332630 3332645

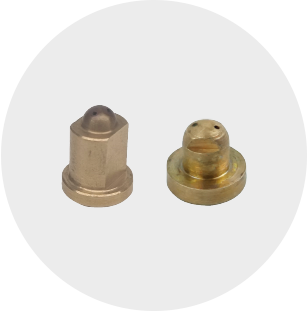

MULTI NOZZLE

멀티 노즐

It is a nozzle that dispense in several orifice

Number of orifice, Orifice Size(mm) 2 3 4
Φ0.3 3340203 3340303 3340403
Φ0.4 3340204 3340304 3340404
Φ0.5 3340205 3340305 3340405
Φ0.6 3340206 3340306 3340406
